EJOT TSSD®

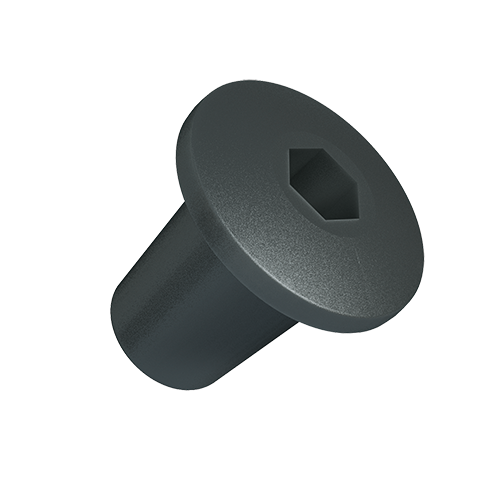

EJOT_EPPsys_TSSD_2

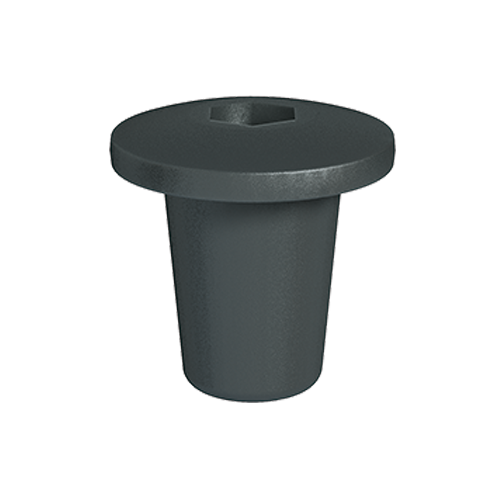

EJOT_EPPsys_TSSD_1

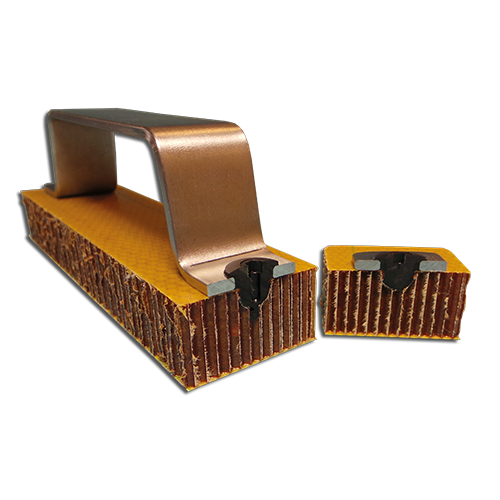

EJOT_TSSD_Waben_Griff

Specification

  • Overview

    • 紧固元件和过程专门用于夹层零件
    • 广泛的应用范围
    • 特别适用于蜂窝结构
    • 高可传递拉力
    • 没有腐蚀
    • 可作为螺丝底孔或直接紧固元件

Sebastian Schrodt

Head of Sales EJOWELD


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

毅结特TSSD摩擦热粘接底孔件

针对纤维增强塑料零件的连接问题，研制了毅结特TSSD (热胶接底孔件)产品及相应的连接工艺。
该工艺适用于蜂窝和泡沫芯结构的夹层板材(有不同的表面覆盖层)以及CRP和GRP塑料材料
在连接过程中，施加一定的转速和轴向力，将塑料底孔(由热塑性塑料制成)安装到塑料组件中。

EJOT TSSD® for direct assembly

The TSSD® version with collar head is suitable for direct fastening of a thin clamping part to a corresponding component structure. The material of the clamping part can be freely selected - all that is needed is a pre-hole through which the TSSD® can penetrate into the component structure.

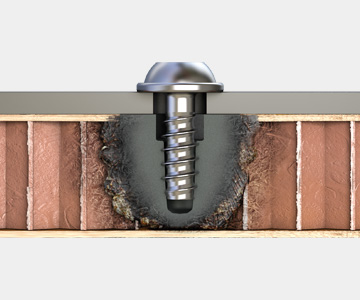

EJOT TSSD® as screw-in boss

If the application involves creating a screw-in option in a component, TSSD® variants without a collar head are used. They are inserted flush into the component during the installation process and then act as a screw-in boss for EVO PT® screws with diameters of 4 or 5 mm.


EJOT TSSD® as snap-fit solution

The TSSD® technology can also be used for snap-fit solutions. For this purpose, we offer a variant of the TSSD® with a ball head which -  together with a corresponding counterpart (ball socket) - can be used to create a detachable snap-fit connection.

Customized TSSD® variants

If the EJOT TSSD® standard solutions do not meet your application-specific requirements, please feel free to talk to us about special solutions. Whether it's a TSSD® for defining a distance to the component, a snap-fit TSSD® for welding onto thin monolithic materials, a TSSD® for the non-detachable joining of e.g. circuit boards or a TSSD® for holding eccentric connectors, as is common in furniture construction. Please contact our experts for further advice.
